20T-SM

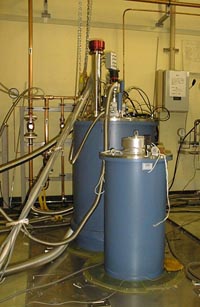

This is 20T superconducting magnet with 52 mm cold bore. The maximum field is 17.5 T. The variable temperature insert, which has 37 mm sample space diameter, is used for low temperature experiments at 2 K < T < 200 K. This magnet supports low temperature physics. You can do some experiments at 30 mK by a dilution refrigerator.

• 　Field: 17.5 T
• 　Time to maximum field: 65 min
• 　Temperature range: 2 K < T < 200 K
• 　Sample space diameter: 37 mm
• 　Field uniformity: 10^-4 / 10 mmDSV
• 　Made by Oxford Instruments
