18T-SM

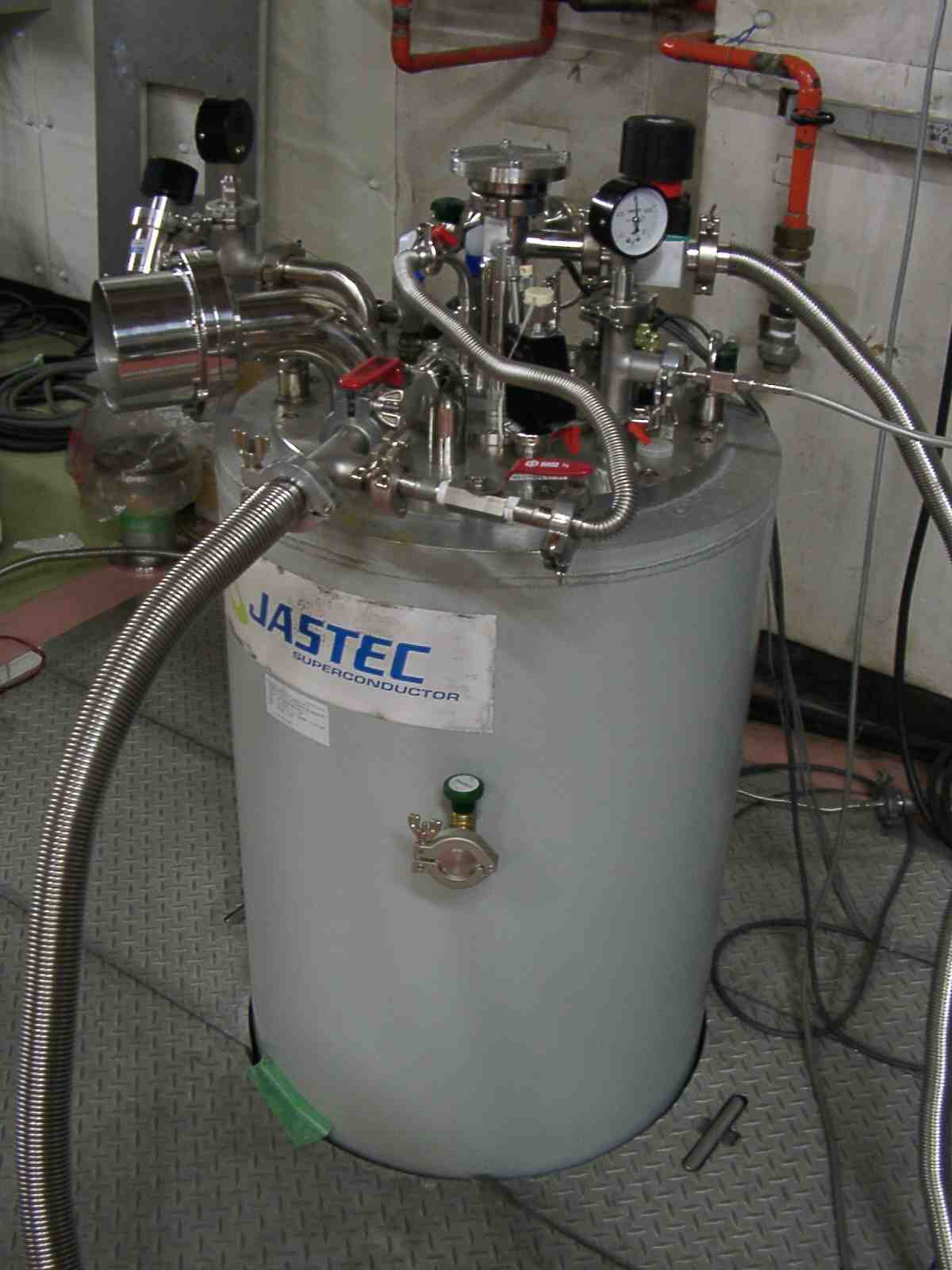

This is 18T superconducting magnet with 52 mm cold bore. The maximum field is 18 T. The variable temperature insert is used for low temperature experiments at 2 K < T ≤ 200 K. This magnet supports low temperature physics.

• 　Field: 18 T
• 　Time to maximum field: ~22 min.
• 　Temperature range: 2 K < T ≤ 200 K
• 　Sample space diameter: 38 mm
• 　Field uniformity: 10^-3 / 10 mmDSV
• 　Access length to magnet center: 1762 mm
• 　Made by Japan Superconducting Technology
