15T-SM

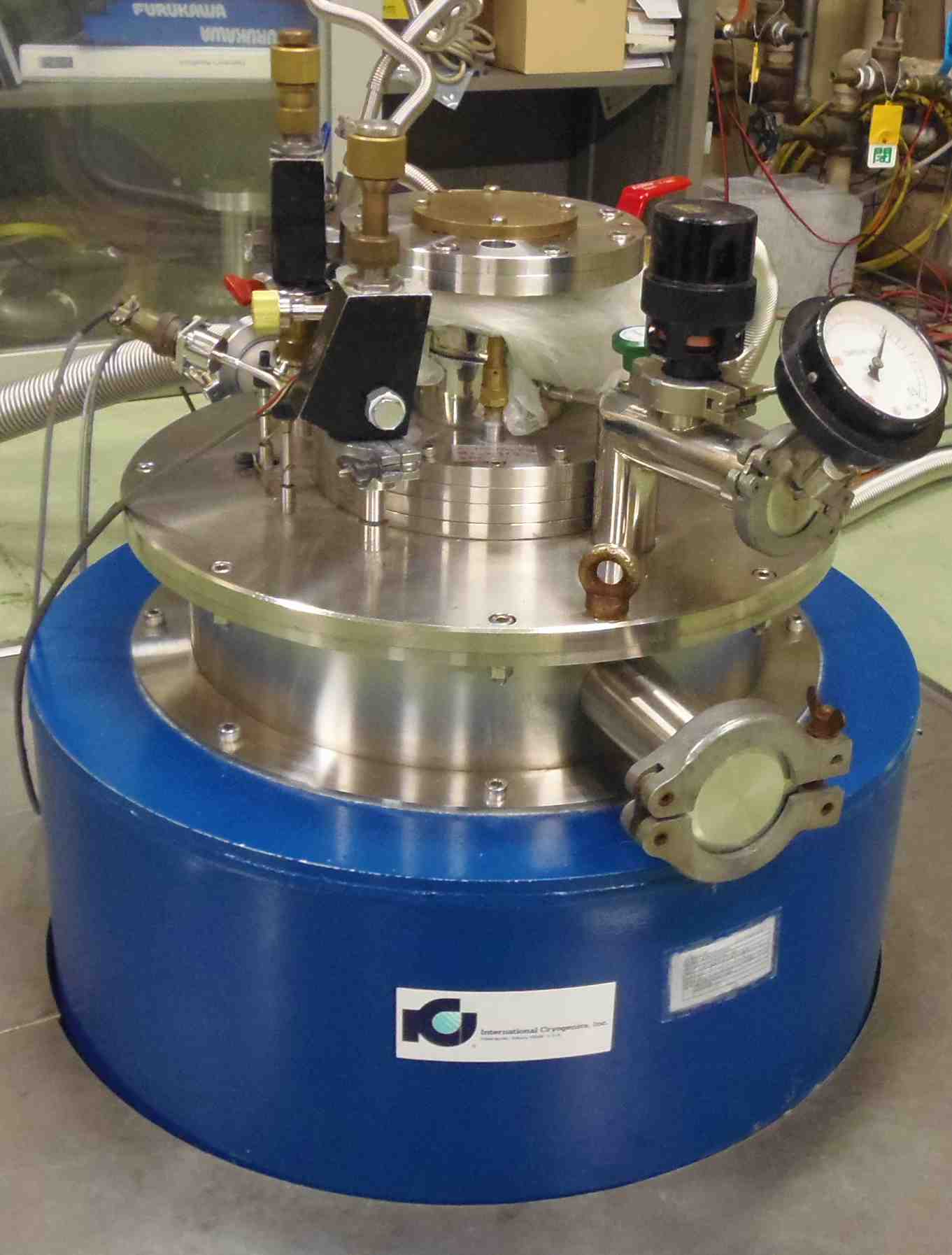

This is 15T superconducting magnet with 52 mm cold bore. The maximum field is 14.5 T. The insert dewar, which has 44 mm sample space diameter, is used for low temperature experiments at 1.2 K < T < 4.2 K. This magnet supports low temperature physics.

• 　Field: 14.5 T
• 　Time to maximum field: 25 min
• 　Temperature range: 1.2 K < T < 4.2 K
• 　Sample space diameter: 44 mm
• 　Field uniformity: 10^-3 / 10 mmDSV
• 　Made by Japan Superconductor Technology
