8T2220-CSM

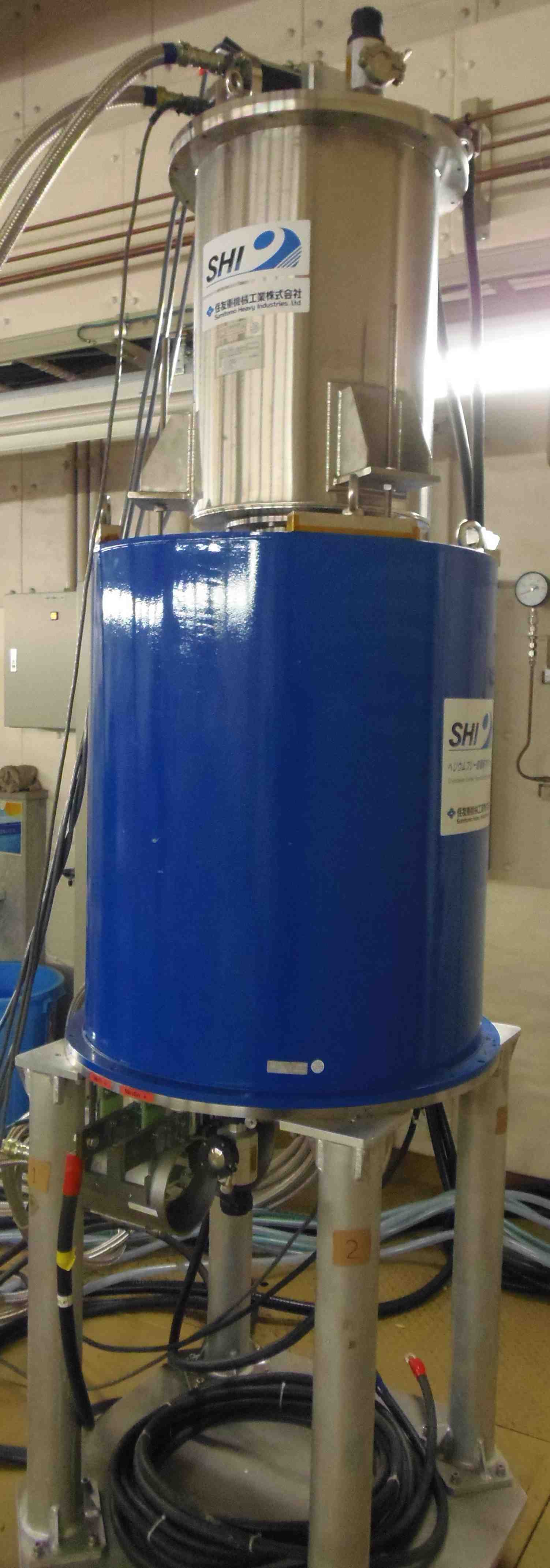

This is the 5 T cryogen-free superconducting magnet with 220 mm room temperature bore. This magnet supports experiments of transport property measurements for low and high temperature superconducting coils.

• 　Field　5 T
• 　Time to maximum field: 16 min
• 　Room temperature bore
• 　Bore diameter: 220 mm
• 　Made by Sumitomo Heavy Industry
