10T100-CSM

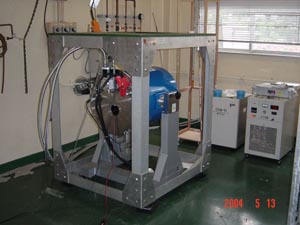

This magnet is 10T cryogen-free superconducting magnet with 100 mm room temperature bore. Time, required for generating the maximum magnetic field of 10 T, is 14 minutes. This magnet supports following experiments: physical property measurement at room temperature, in-field heat treatment, and magnetic measurement with VSM.

• 　Field: 10 T
• 　Time to maximum field: 14 min
• 　Room temperature bore
• 　Bore diameter: 100 mm
• 　Field uniformity: 10^-3 / 10 mmDSV
• 　Made by Sumitomo Heavy Industry
