15T-CSM
2017/06/08(Thu) 11:06

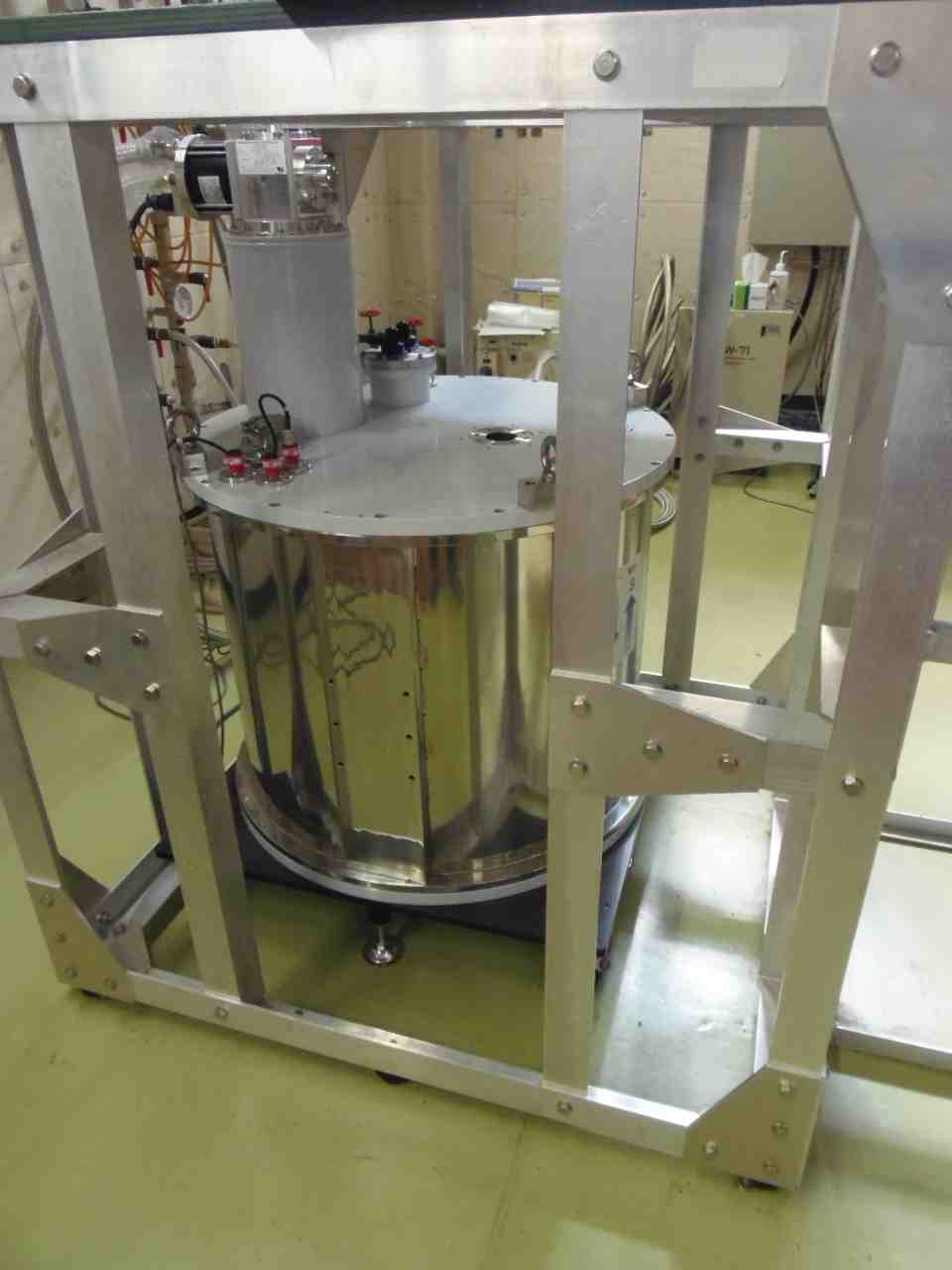

This magnet is 15T cryogen-free superconducting magnet with 52 mm room temperature bore. The maximum field is 15 T.
This magnet supports following experiments: in-field heat treatment, magnetic measurement at low and high temperature, low temperature experiments cooled by cryocooler, etc.
- Field: 15 T
- Time to maximum field: 30 min
- Room temperature bore
- Bore diameter: 52 mm
- Field uniformity: 10-3 / 10 mmDSV
- Made by Japan Superconductor Technology
