11) Cryogenfree 23 T Hybrid Magnet

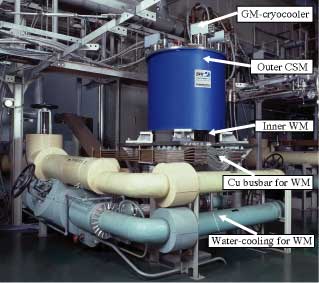

@@We are now constructing a cryogenfree 23 T hybrid magnet at the High Field Laboratory for Superconducting Materials, Institute for Materials Research, Tohoku University. The world's first cryogenfree hybrid magnet combined with an inner 15.5 T water-cooled resistive magnet was tested, and at present, the central magnetic field of 21.5 T was generated in a 52 mm room temperature experimental bore. The magnetic force field of 2270 T2/m was obtained. Using a YAG laser combined with the cryogenfree hybrid magnet, a containerless melting experiment in magnetic levitation was performed to fabricate a field-oriented paraffin fine ball.

IMR, Tohoku University : Kazuo Watanabe, Satoshi Awaji
CREST, Japan Science and Technology Corp., : Mitsuhiro Motokawa

Reference : K. Watanabe, S. Awaji, K. Takahashi, G. Nishijima, M. Motokawa, Y. Sasaki, Y. Ishikawa, K. Jikihara, J. Sakuraba,
"Construction of the Cryogen-Free 23 T Hybrid Magnet
" ,
IEEE Trans. Appl. Supercond. 12 (2002) 678-681.
@@
